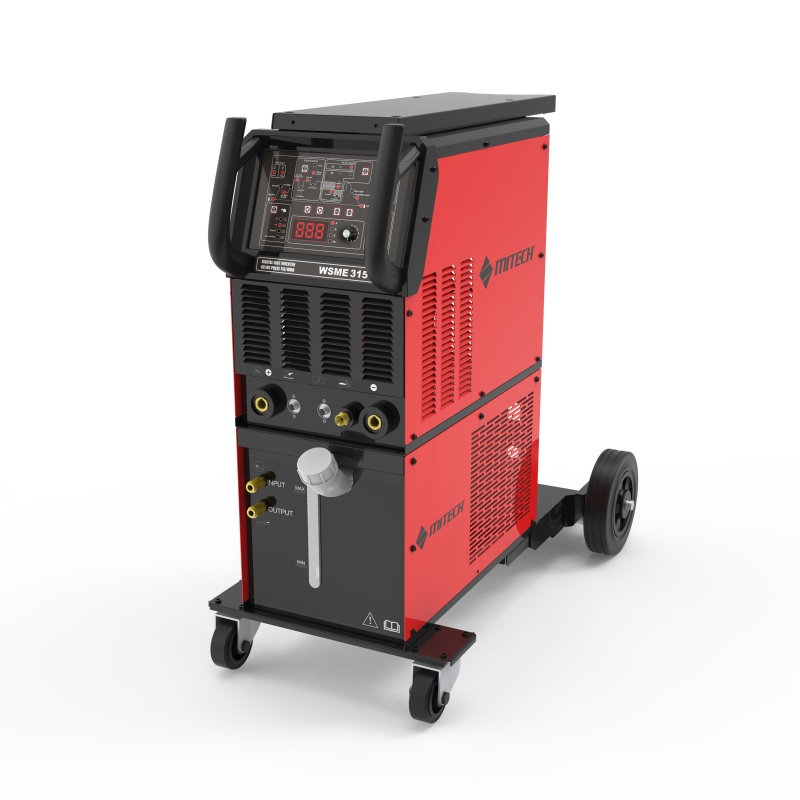

Compact design: trolley,water tank,power source can be selected according to applications.
Microprocessor control: simple operation,more perfect welding performance.
Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.
The unique air duct design: failure rate greatly reduced,extending the service life of the machine.
Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.
|

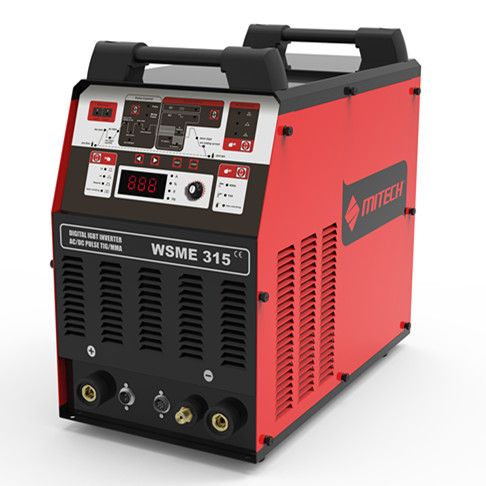

Model |
WSME315 |
||
|
Item |
MMA |
DC-TIG |
AC-TIG |
|
Input power voltage（V） |
AC380V±15% 3PH |
|
|
|
Input voltage frequency（HZ） |
50/60 |
|
|
|
Rated input power capacity（KVA） |
13 |
9 |
|
|
Rated input current (A) |
19.7 |
13.7 |
|
|
Rated output voltage（V) |
32.6 |
22.6 |
|
|
Output current range(A) |
40-315 |
5-315 |
20-315 |
|
No-load voltage(V) |
67 |
67 |
|
|
Arc force adjustment(A) |
|
|
|
|
Pre-flow time (S) |
|
0-10 |
|
|
Post-gas time(S) |
|
0-60 |
|
|
Slope-down time (S) |
|
0-10 |
|
|
Pulse current(A) |
|
5-315 |
20-315 |
|
Pulse frequency (HZ) |
|
0.1-20 |
|
|
Pulse width(%) |
|
10-90 |
|
|
Clear width（%） |
|
|
20-70 |
|
Clear depth(%) |
|
|
-50～+50 |
|
AC frequency（HZ） |
|
|
20-200 |
|
Welding time(ms) |
|
|
|
|
Welding interval(ms) |
|
|
|
|
Duty cycle(%) |
60
|
60 |
|
|
No-load consumption (W) |
60 |
60 |
|
|
Insulation class |
60% |
|
|
|
Protection class |
F |
||
|
Power factor |
0.93 |
||
|
Efficiency（%） |
85 | ||
|
Weight(KG) |
26 |
||
|
Dimension(mm) |
515*280*420 |
||
|
Water tank |
|
|
Power Voltage(V) |
AC380V±15% 50HZ |
|
Phase |
1PH |
|
Heat dissipation capacity |
1.5KW(1L/MIN) |
|
Power capacity of motor |
370W |
|
Max pressure/Lift |
0.3MPa/35m |
|
Water volume |
7L |
|
Operation temperature |
-20℃~60℃ |
|
Weight |
15KG |
|
Dimension(mm) |
622×305×270 |
Metal fabrication workshops
Repair and maintenance
Chemical and process industry
