Portable with light weight in shop or at job site
Two welding modes, TIG and MMA
Easy arc-striking and stable current, fast dynamic reaction
Outstanding arc stability and welding performance
Compatible with network or generator use
Auto-protection against over voltage and over heat

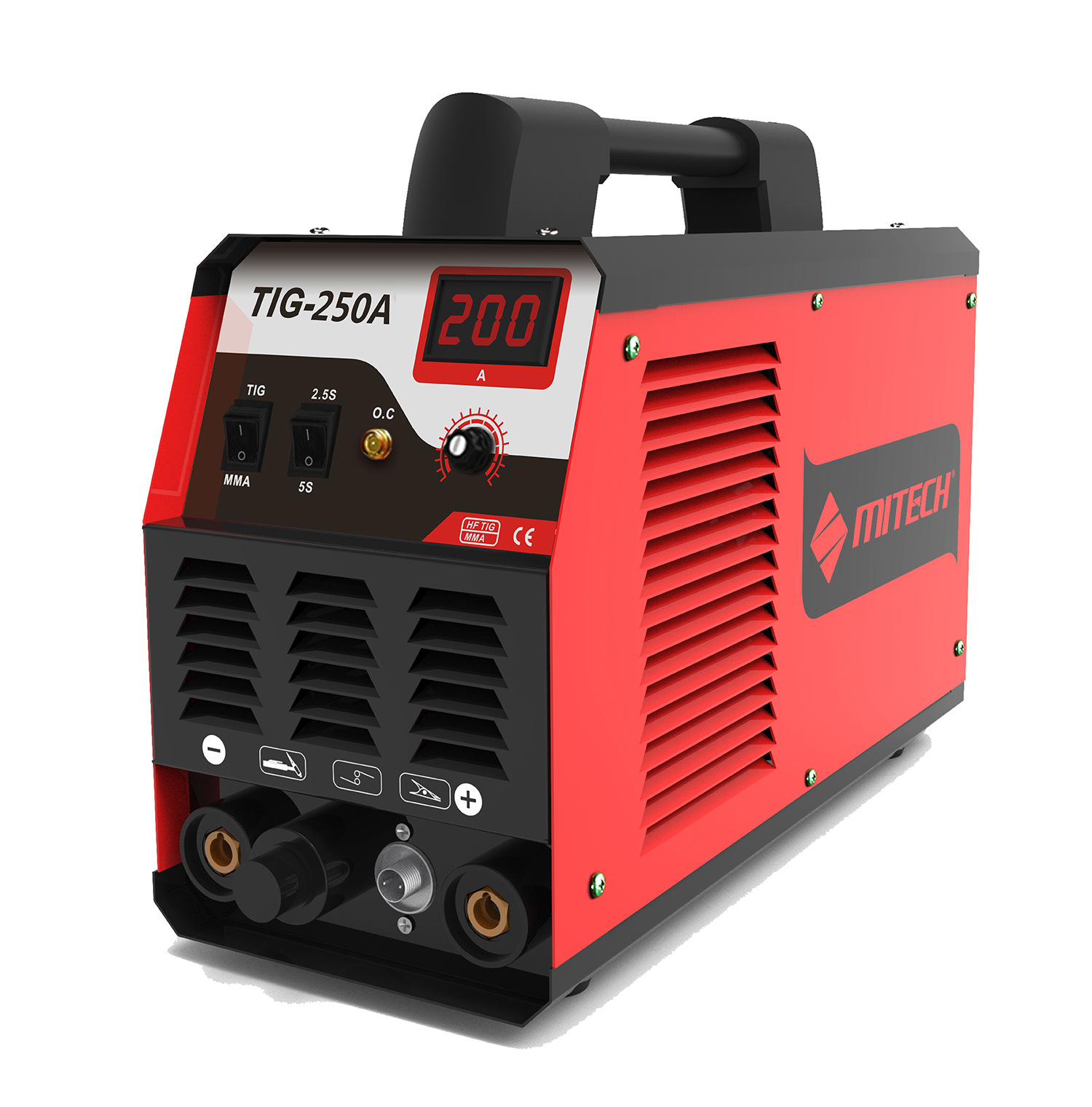

| Model | TIG250A | |
| Item | MMA | TIG |
| Input Voltage | AC220V+15% 1PH | |
| Rated input power capacity(KVA) | 7 | 4.6 |
| Rated input current (A) | 31.8 | 20.9 |
| No-load voltage(V) | 56 | |
| Output current range(A) | 10-200 | 10-200 |
| Rated output voltage（V) | 28 | 18 |
| Arc force adjustment(A) | ||
| Post-gas time(S) | 2.5+0.5/5±0.5 | |
| Duty cycle(%) | 60 | |
| No-load consumption (W) | 60 | |
| Efficiency（%） | 85 | |
| Power factor | 0.93 | |
| Insulation class | F | |
| Weight(KG) | 10 | |
| Diamension(mm) | 356x153x225 | |
Metal workshops
Repair and maintenance
Installation and set-up
Thin sheet metal fabrication workshops
Chemical and process industry
1.WP-26 torch with 4m cable
2.300A Earth clamp with 2m cable 16 (Al)
3.1 cable connector(16A)
