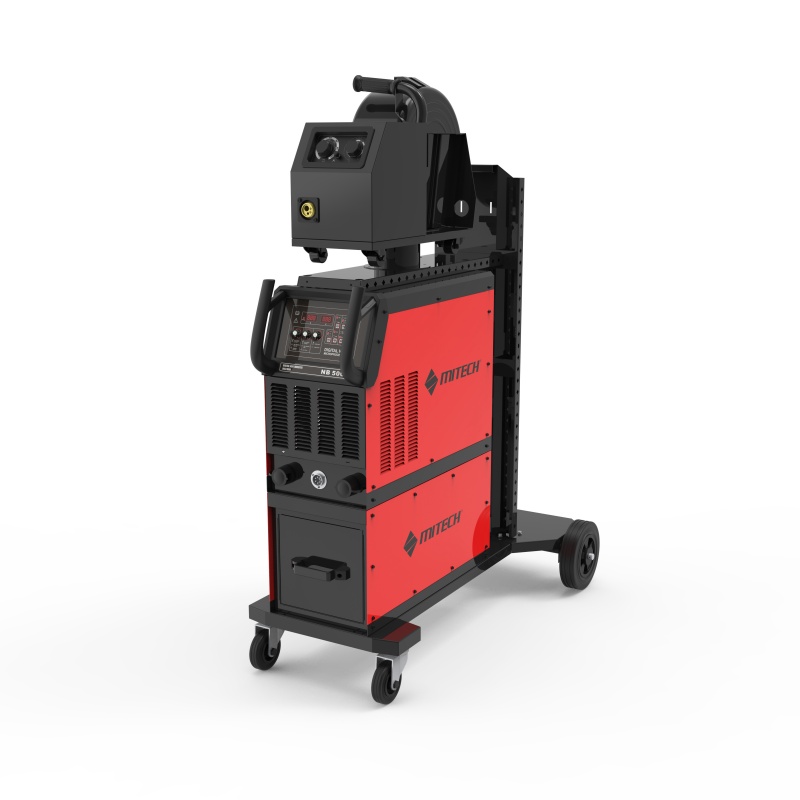

Compact design: trolley,water tank,power source can be selected according to applications.
Microprocessor control: simple operation,more perfect welding performance.
Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.
The unique air duct design: failure rate greatly reduced,extending the service life of the machine.
Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.
|
Model |
NB400 |
|
NB500 |
|
|
Parameter |
MMA | MIG |
MMA
|
MIG |
|
|
|
Adjustment range |
|
Adjustment range |
|
Input power voltage (V) |
AC380V±15% 3PH |
AC380V±15% 3PH |
||
|
Input voltage frequency (HZ) |
50/60 |
50/60 |
||
|
Rated input power capacity (KVA) |
15.1 | 17.2 |
25.3 |
24.7 |
|
Output current range (A) |
20-350 | 20-400 |
20-500 |
20-500 |
|
No-load voltage (V) |
67 |
77 |
||
|
Pre-flow(0.1S) |
|
0-20 |
|
0-20 |
|
Post-gas(0.1S) |
|
0-20 |
|
0-20 |
|
Burn back time(0.1S) |
|
0-20 |
|
0-20 |
|
Duty cycle (%) |
60 |
60 |
||
|
No-load consumption (W) |
60 |
60 |
||
|
Weight (KG) |
35 |
40 |
||
|
Dimension (mm) |
622×280×480 |
622×280×480 |
||
Repair and maintenance
Chemical and process industry
Installation and set-up
Shipyard and offshore industry
Production welding
