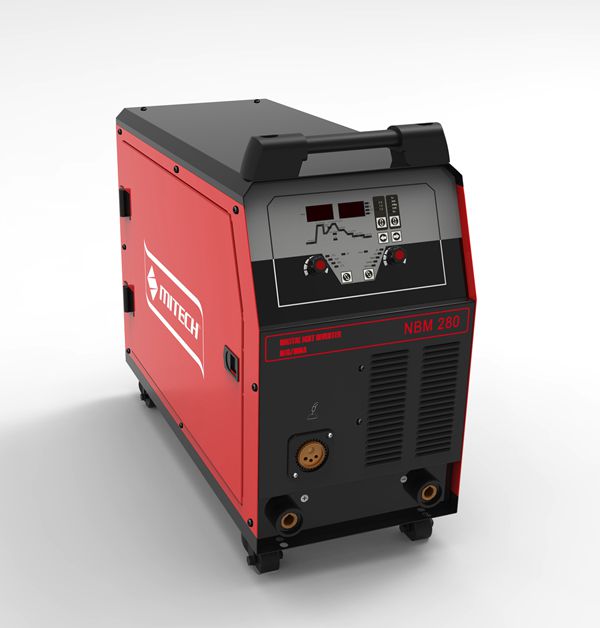

DIGITAL INVERTER DOUBLE PULSE MIG/MMA WELDING MACHINE
【Model 】:NBM280
【Brief 】:

Portable, function of MMA and MIG,PULSE .

High duty cycle, low energy consumption

Deep molten puddle, less spatter, nice welding seam.

【Series】:MIG PULSE
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Function of MMA&MIG,single pulse/double pulse,much compact design for 300mm coil which can be well protected internally .

Digital welding process control for precision in the welding process,exact reproducibility and outstanding properties.

Synergic operation.The optimum welding parameters can be achieved by simply selecting the material &size and stored expert parameters on the control panel .

With arc ending & spot welding ,deep molten puddle,less spatter.





Model

  NBM280

Parameter

 MMA

 MIG







 Adjustment range

 Preset

Input power voltage (V)

 AC380V±15% 3PH

Input voltage frequency (HZ)

  50/60

Rated input power capacity (KVA)

 11

 10


Output current range (A)

 40-280

 40-280


No-load voltage (V)

 67


Pre-flow(S)

 0-5

 0

Post-gas(S)

 0-5

 0

Burn back time(S)

 0-2

 0.3

Duty cycle (%)

 60


No-load consumption (W)

 60


Wire feeder

 Biult-in


Weight (KG)

 25

Dimension (mm)

 600x280x450

Aerospace industry;

Automobile and component supply industry;

Maintenance and repair

Shipbuilding/offshore
