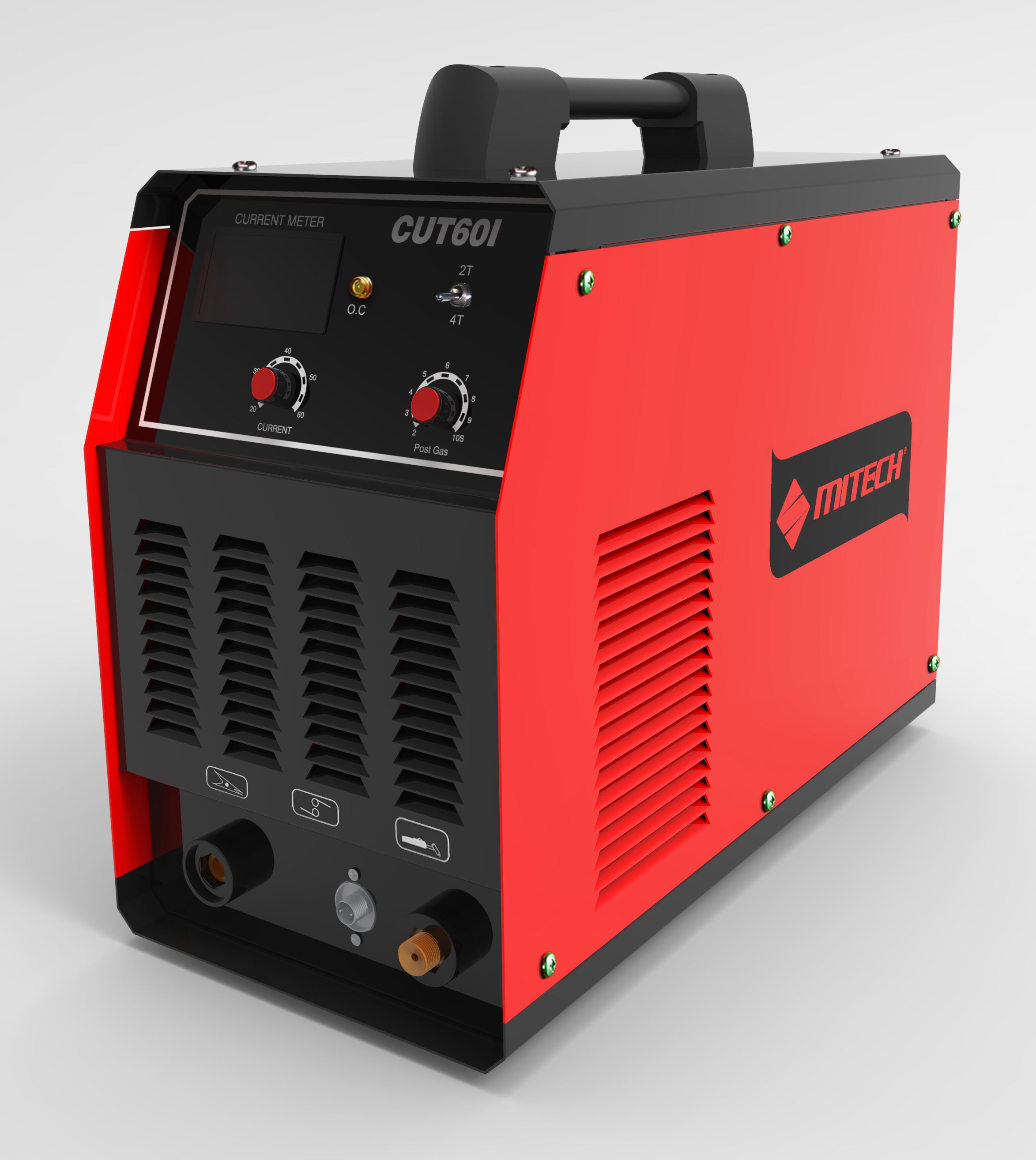

INVERTER AIR PLASMA CUTTING MACHINE
【Model 】:CUT60I
【Brief 】:

Much more economical and more efficient than flame cutting machine by using the compressed air as cutting source.

       Narrow cutting seam, smooth appearance, less transmutation
【Series】:PLASMA CUTTER
Close
    Feedback Form:
    E-mail:     *
    Message:     *



Advanced design, high inverter frequency, high duty cycle, low energy consumption.

Portable with light weight in shop or at job site

Much more economical and more efficient than flame cutting machine by using the compressed air as cutting source.

Narrow cutting seam, smooth appearance, less transmutation

Widely used in mild steel, stainless steel, titanium, aluminum cutting and so on.

Compatible with network or generator use

Auto-protection against over voltage and over heat

Model
CUT60I
Input power voltage(V)
AC220V±15%
1PH

Input voltage frequency
50/60
Rated input power capacity(KVA)
7.9
No-load voltage(V)
264
Output current range(A)
20-60
Duty cycle(%)
60
Power factor
0.93
Insulation class
F
Protection class
IP21S
Arc- striking
Touch
Air pressure ( M Pa)
0.6
Suggested cutting thickness(MM)
20
Cutting Thickness ( mm)
23
Weight(KG)
18
Dimension(mm
450*220*345

Metal workshops

Construction industry
