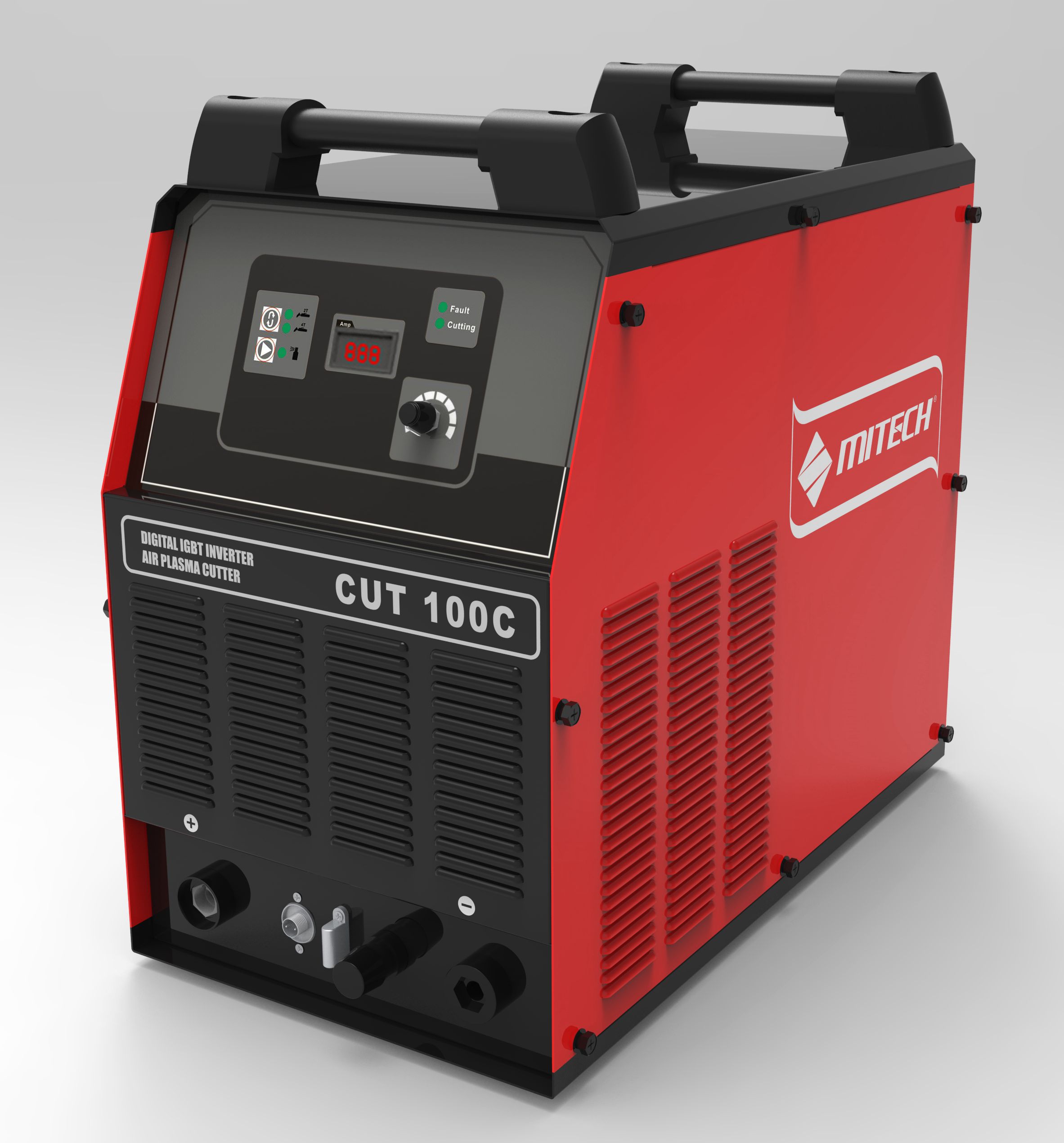

DIGITAL INVERTER AIR PLASMA CUTTING MACHINE
【Model 】:CUT100C
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function

The unique air duct design

Unitization design

【Series】:PLASMA CUTTER
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.



Model
CUT100C
Input power voltage(V)
AC380V±15%
3PH
Input voltage frequency
50/60
Rated input power capacity(KVA)
15.1
No-load voltage(V)
285
Output current range(A) 5-100
Duty cycle(%)
60
Power factor
0.93
Insulation class
F
Protection class
IP21S
Arc- striking
Non-Touch
Air pressure ( M Pa)
0.6
Suggested cutting thickness(MM)
25
Cutting Thickness ( mm)
40
Weight(KG) 28.3
Dimension(mm
500×280×435



Metal workshops

Construction industry
