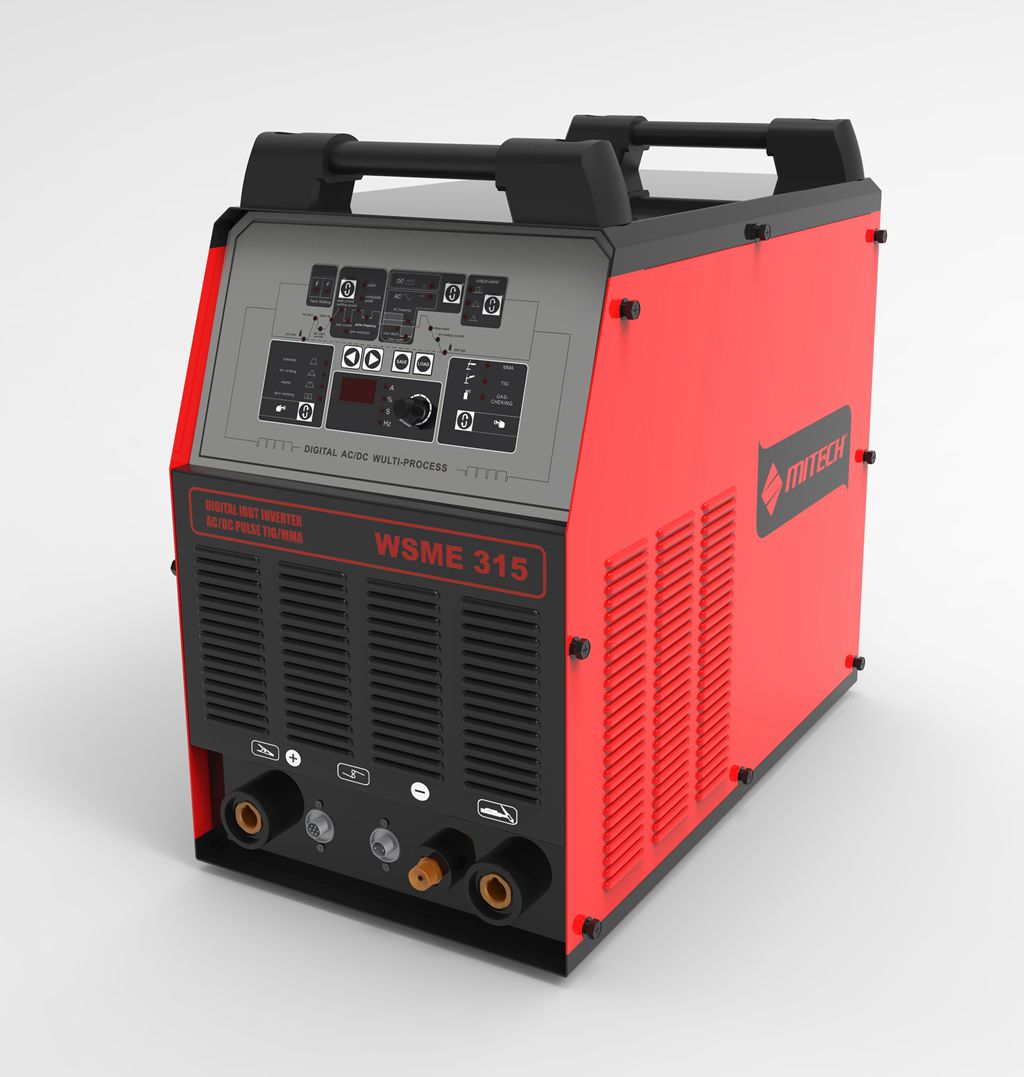

DIGITAL INVERTER AC/DC TIG/MMA/PULSE WELDING MACHINE
【Model 】:WSME315
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function

The unique air duct design

Unitization design

【Series】:TIG(GTAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.



Model

WSME315

MMA

TIG

Adjustment range

Preset

Input power voltageV

AC380V±15% 3PH

Input voltage frequencyHZ

50/60

Rated input power capacityKVA

13

9

No-load voltageV

67

67

Output current rangeA

5-315

5-315

Constant currentA

5-315

Pre-flowS

0-10

0.1

Hot start current(A)

5-315

50

Arc-striking currentA

5-315

40

Up-slopeS

0-10

5

Spot welding(S)

0-10

3

Base currentA

5-315

10

Peak currentA

5-315

150

Pulse width%

10-90

30

Pulse frequencyHZ

0.1-20

5

Clear width%

10-90

30

Clear depth (%)

-50+50

0

AC frequencyHZ

20-200

80

Down-slopeS

0-10

5

Arc-ending currentA

5-315

20

Post-gas S

0-10

5

Duty cycle%

60%

WeightKG

26

Dimensionmm

500×280×435



Water tank

Power Voltage(V)

AC380V±15% 50HZ

Phase

1PH

Heat dissipation capacity

1.5KW(1L/MIN)

Power capacity of motor

370W

Max pressure/Lift

0.3MPa/35m

Water volume

7L

Operation temperature

-20~60

Weight

15KG

Dimension(mm)

622×305×270



Metal fabrication workshops

Repair and maintenance

Chemical and process industry
