INVERTER DC TIG / MMA WELDING MACHINE
【Model 】:TIG200A
【Brief 】:

Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

【Series】:TIG(GTAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

Easy arc-striking and stable current, fast dynamic reaction

Outstanding arc stability and welding performance

Compatible with network or generator use

Auto-protection against over voltage and over heat

Model TIG200A
Item MMA TIG
Input Voltage
AC220V+15% 1PH
Rated input power capacity(KVA)  4.7 3.3
Rated input current (A) 21.5 15.1
No-load voltage(V) 56
Output current range(A) 10-160 10-160
Rated output voltage(V) 25.8 16.4
Arc force adjustment(A)
Post-gas time(S) 2+0.5
Duty cycle(%) 60
No-load consumption (W) 60
Efficiency% 85
Power factor 0.93
Insulation class F
Weight(KG) 9
Diamension(mm) 356x153x225

Metal workshops

Repair and maintenance

Installation and set-up

Thin sheet metal fabrication workshops

Chemical and process industry

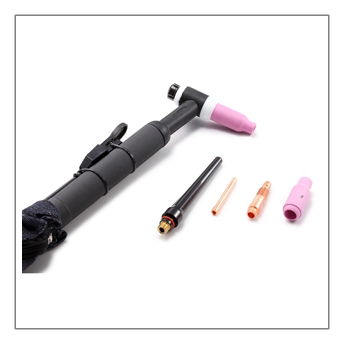

1.WP-17 torch with 4m cable

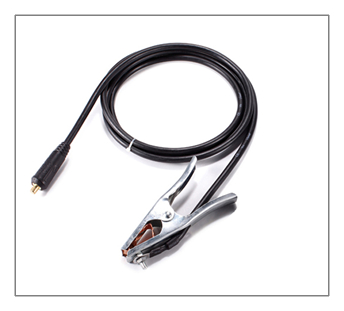

2.300A Earth clamp with 2m cable 16 (Al)

3.1 cable connector(16A)
