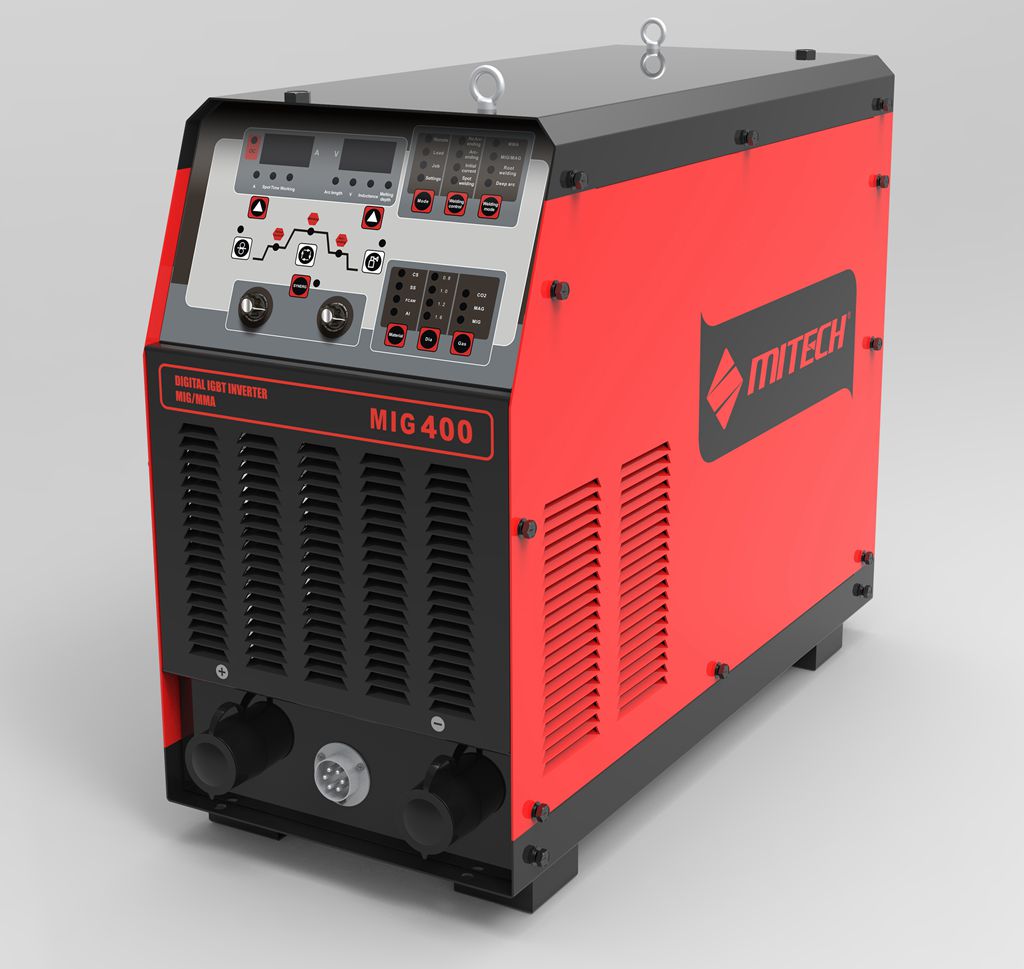

DIGITAL INVERTER MIG/MMA WELDING MACHINE
【Model 】:MIG400
【Brief 】:

Compact design

Microprocessor control

Comprehensive protecting function

The unique air duct design

Unitization design

【Series】:MIG(GMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design: trolley,water tank,power source can be selected according to applications.

Microprocessor control: simple operation,more perfect welding performance.

Comprehensive protecting function: with the protection of overvoltage,under voltage,default phase,against lightning stroke,overcurrent,over heat etc.

The unique air duct design: failure rate greatly reduced,extending the service life of the machine.

Unitization design: the machine consists of 4 units-control unit,input unit,inverter unit,output unit. Only need replace the related unit power board for maintenance,any professional debugging is unnecessary.



Model

 MIG400



  MIG

 MMA

Input power voltage(V)

 AC380V±15%  3PH

Input voltage frequency(HZ)

 50/60

Rated input power capacity (KVA)

17.2

18.2

Rated input current(A)

26.1

27.7

Output current range(A)

 40-400

 40-400

No-load voltage(V)

68

Duty cycle(%)

 60

No-load consumption (W)

 60

Efficiency(%)

85

Power factor

0.93

Insulation class

Protection class

 IP21S

Weight(kg)

 21

Dimension(mm)

 622x280x480



Repair and maintenance

Chemical and process industry

Installation and set-up

Shipyard and offshore industry

Production welding
