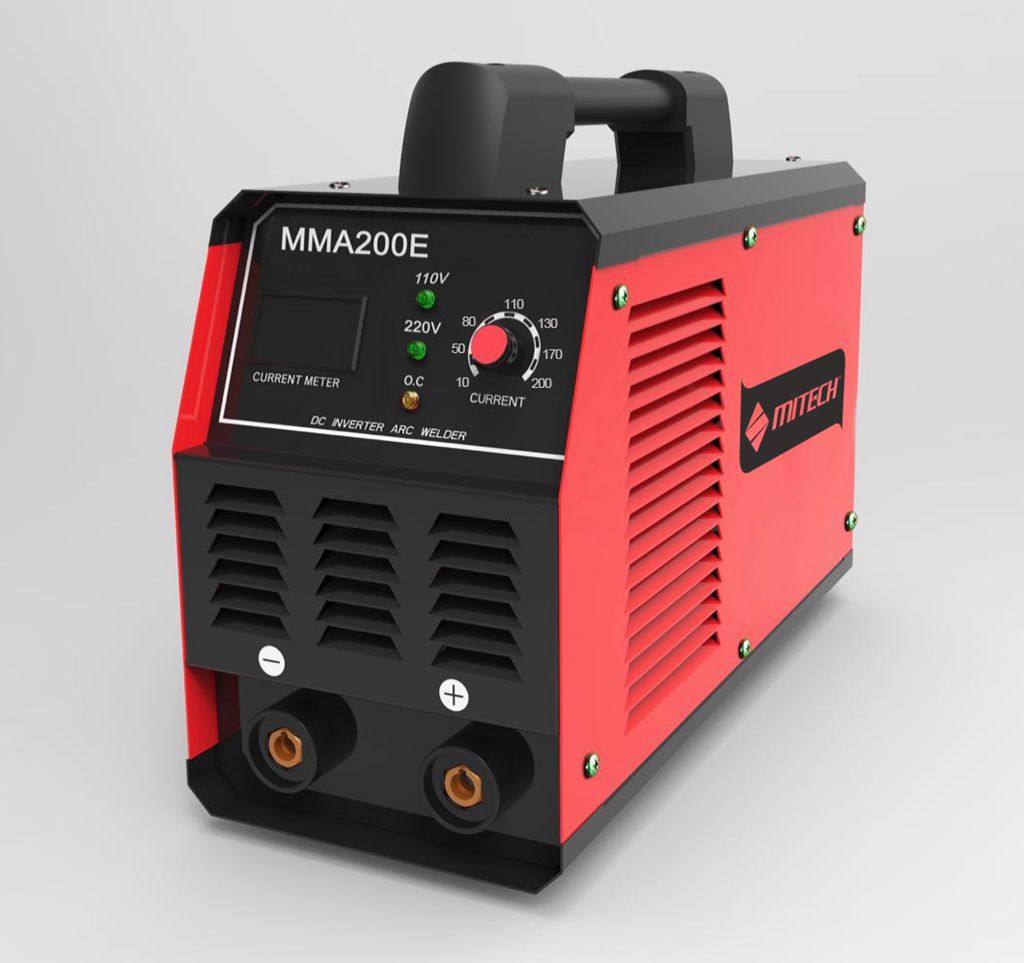

DUAL VOLTAGE INVERTER DC MMA WELDING MACHINE
【Model 】:MMA200E
【Brief 】:

Compact design ,equipped with imported IGBT device of high power

Rugged design with portable light weight 4KGS

【Series】:STICK(SMAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Compact design ,equipped with imported IGBT device of high power

Rugged design with portable light weight 6KGS

High duty cycle and most cost-effective

Work with 1.6-3.2 rod





Model MMA200E
Input Power Voltage(v)
AC110V+15%   1PH
AC220V+15% 1PH
Rated input power capacity(KVA)
3.8
5.3
Input voltage frequency(HZ)
50/60
Rated input current(A)
34.5 24.1
No-load voltage(V)
56
Output current range(A)
30-120
30-160
Rated output volatage(V)
24.8
26.4
Duty cycle(%)
60
Insulation class
F
Protection class
IP21S
Diameter of rod
1.6-3.2
1.6-4.0
Power factor
0.93
Efficiency(%)
85
Weight(KG)
6
Diamension(mm)
356x153x225





Metal workshops

Repair and maintenance
