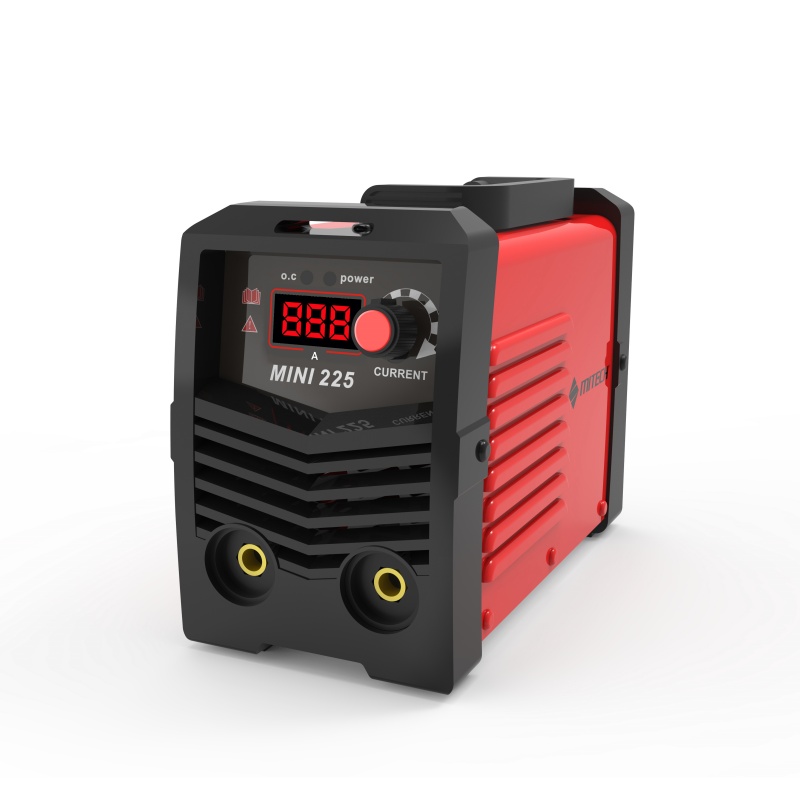

Compact design ,equipped with imported IGBT device of high power
Rugged design with portable light weight 4KGS
High duty cycle and most cost-effective
Work with 1.6-3.2 rod
| MODEL | MINI 200 | MMA200I | MMA250I |
| Input Voltage |
AC220V+15% 1PH |
AC220V+15% 1PH |
AC220V+15% 1PH |
| Rated input power capacity(KVA) | 3.8 | 4.5 | 5.3 |
| Input voltage frequency(HZ) | 50/60 | 50/60 | 50/60 |
| Rated input current(A) | 17.1 | 20 | 24.2 |
| No-load voltage(V) | 60 | 55 | 55 |
| Output current range(A) | 30-120 | 30-140 | 30-160 |
| Arc force | |||
| Rated output volatage(V) | 24.8 | 25.6 | 26.4 |
| Duty cycle(%) | 60 | 60 | 60 |
| Insulation class | F | F | F |
| Protection class | IP21S | IP21S | IP21S |
| Diameter of rod | 1.6-3.2 | 1.6-3.2 | 1.6-4.0 |
| Power factor | 0.93 | 0.93 | 0.93 |
| Efficiency（%） | 85 | 85 | 85 |
| Weight(KG) | 2 | 4 | 4.5 |
| Diamension(mm) | 210x90x116 | 283x133x198 | 283x133x198 |
Metal workshops
Repair and maintenance
1.Electric holder with 1.5m cable (16mm2)
2.Earth clamp with 1m cable (16mm2)
