Compact design ,equipped with imported IGBT device of high power
Rugged design with portable light weight 3.7KGS
High duty cycle and most cost-effective
Work with 1.6-4.0 rod

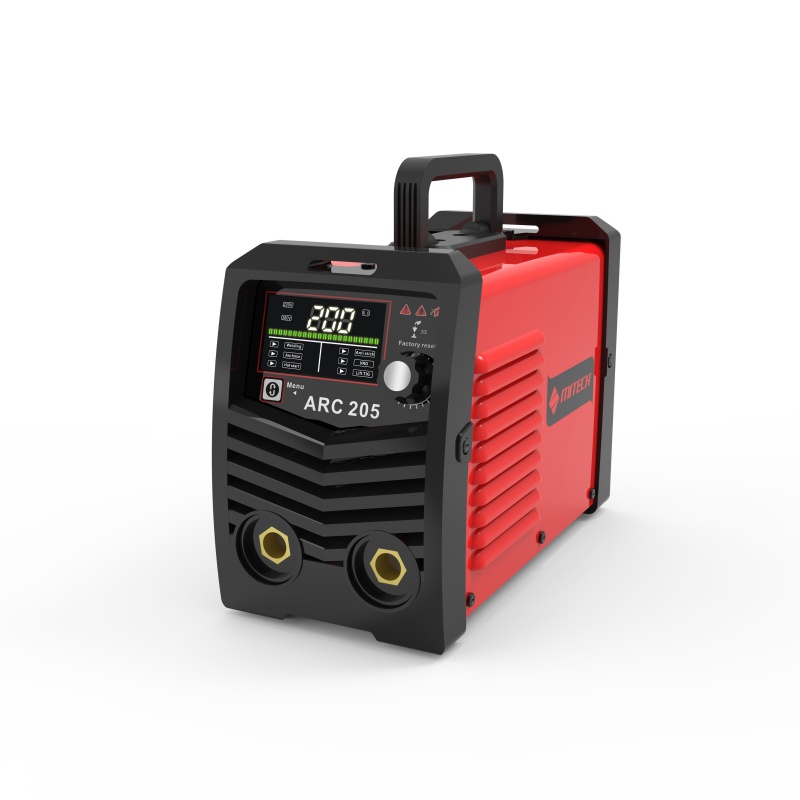

| Model | ARC205 | |
|
|
MMA | Lift-TIG |
|
Input Power Voltage(v) |
AC220V+15% 1PH
|
|
|
Rated input power capacity(KVA) |
7.1 |
4.6 |
|
Input voltage frequency(HZ) |
50/60 |
|
|
Rated input current(A) |
32.2 |
20.7 |
|
No-load voltage(V) |
78 |
|
|
Output current range(A) |
30-200 |
20-200 |
|
Rated output voltage(V) |
28 |
18 |
|
Duty cycle(%) |
60 |
|
|
Insulation class |
F |
|
|
Protection class |
IP21S |
|
|
Diameter of rod |
1.6-4.0 |
|
|
Power factor |
0.93 |
|
|
Efficiency（%） |
85 | |
|
Weight(KG) |
3.7 |
|
|
Diamension(mm) |
267x133x180 |
|
Metal workshops
Repair and maintenance
A. Electric holder with 1.5m cable .
B. Earth clamp with 1m cable .
