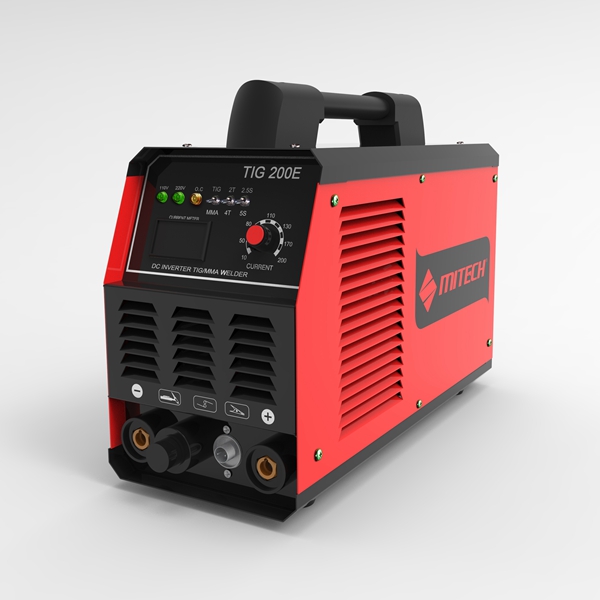

DUAL VOLTAGE INVERTER DC TIG / MMA WELDING MACHINE
【Model 】:TIG200E
【Brief 】:

Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

【Series】:TIG(GTAW)
Close
    Feedback Form:
    E-mail:     *
    Message:     *


Portable with light weight in shop or at job site

Two welding modes, TIG and MMA

Easy arc-striking and stable current, fast dynamic reaction

Outstanding arc stability and welding performance

Compatible with network or generator use

Auto-protection against over voltage and over heat

Model

TIG200E



 MMA

TIG

MMA

 TIG

Input voltage  (V)

 AC110V+15%
1PH

 AC220V+15%
1PH

 Rated input power capacity(KVA)

 3.8

 2.3

 5.3

 3.3

 Rated input current (A)

 34.5

 20.9

 24.1

15

 No-load voltage(V)

 56

 Output current range(A)

 10-120

 10-120

 10-160

 10-160

 Rated output voltage

 24.8

 14.8

 26.4

 16.4

 Post-gas time(S)

2.5-5s

 Duty cycle(%)

 60

 Efficiency(%)

 85

 Power factor

 0.93

 Insulation class

 F

 Protection class

 IP21S

 Weight(KG)

 6.5

 Diamension(mm)

 356x153x225

Metal workshops

Repair and maintenance

Installation and set-up

Thin sheet metal fabrication workshops

Chemical and process industry
